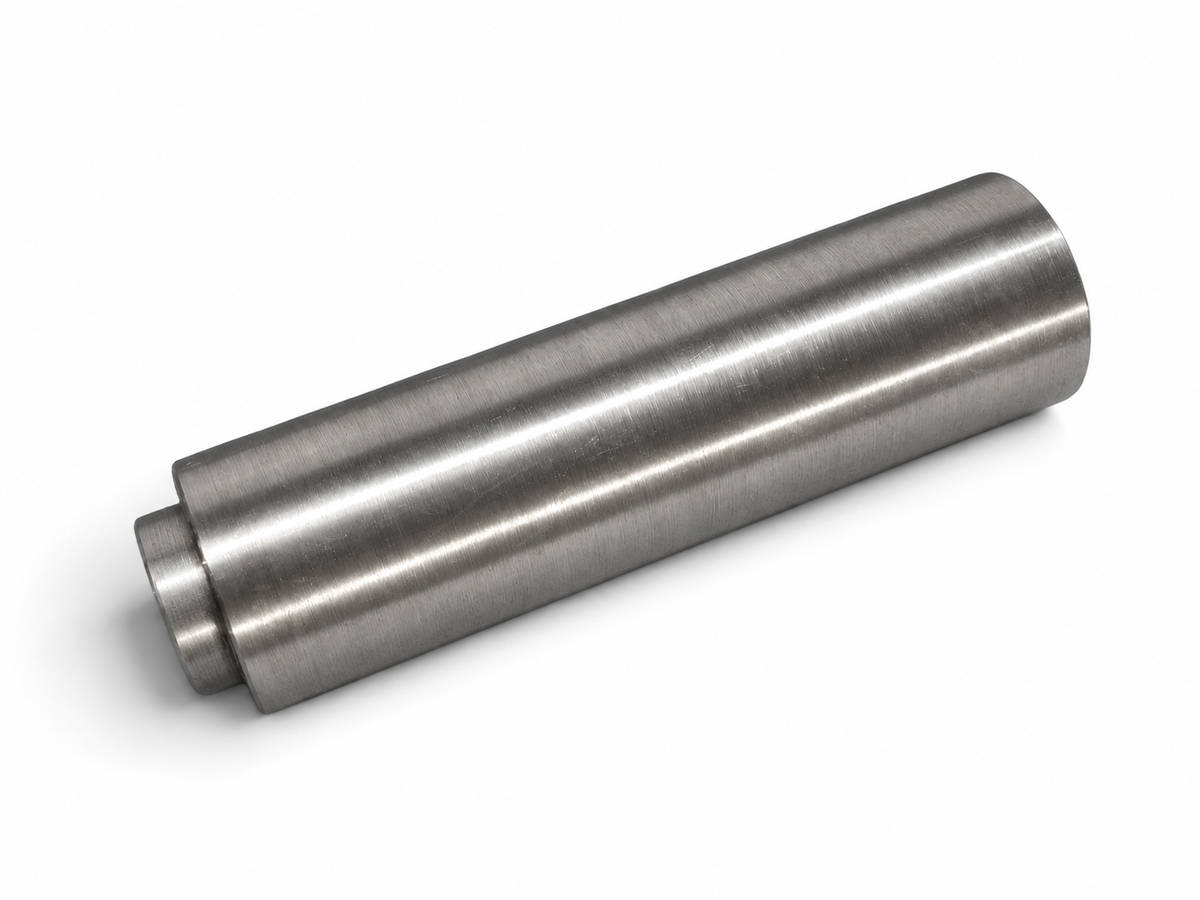

Pangea Speed internal throttle, assembled view on a white background

Internal Throttle

$105.00
Skip to product information
Pangea Speed internal throttle, assembled view on a white background
  • Pangea Speed internal throttle, assembled view on a white background

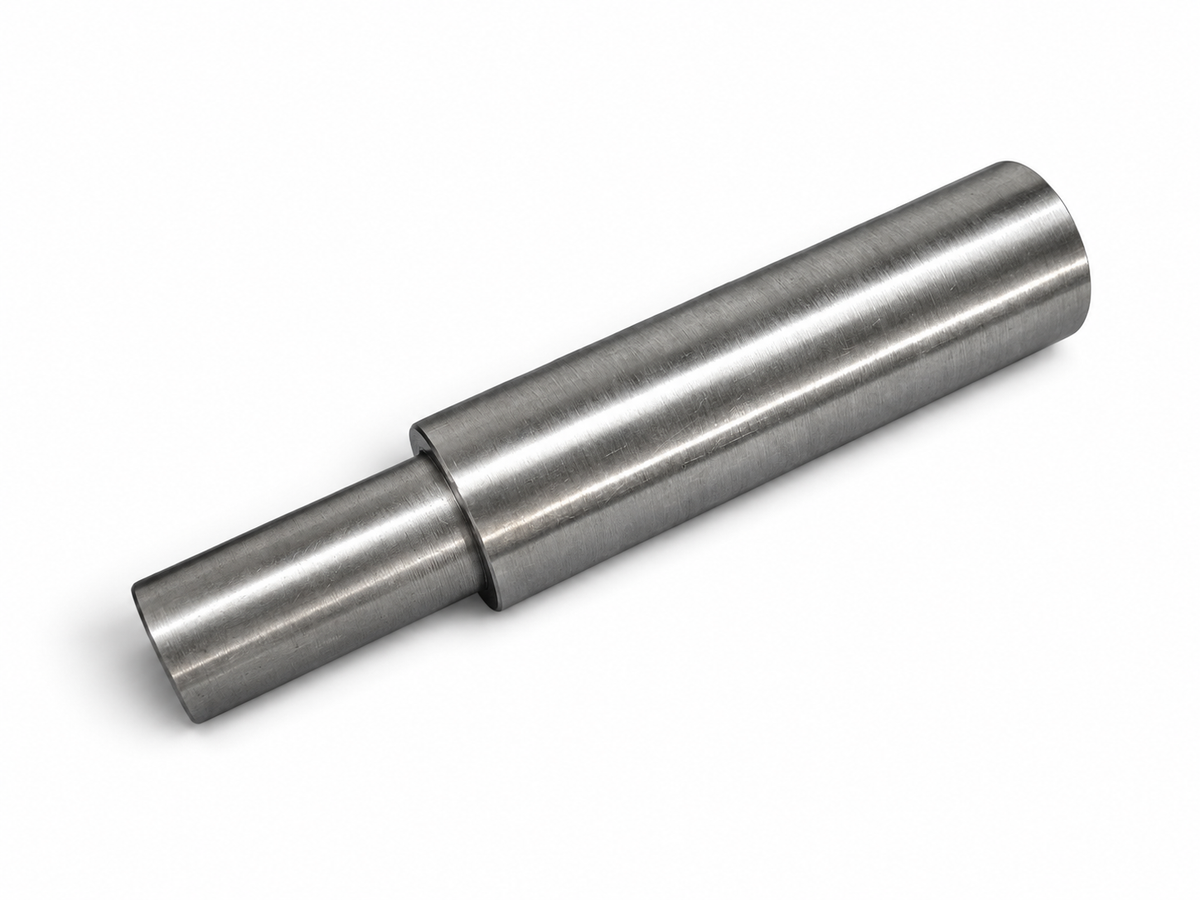

  • Pangea Speed internal throttle with shaft extended on a white background

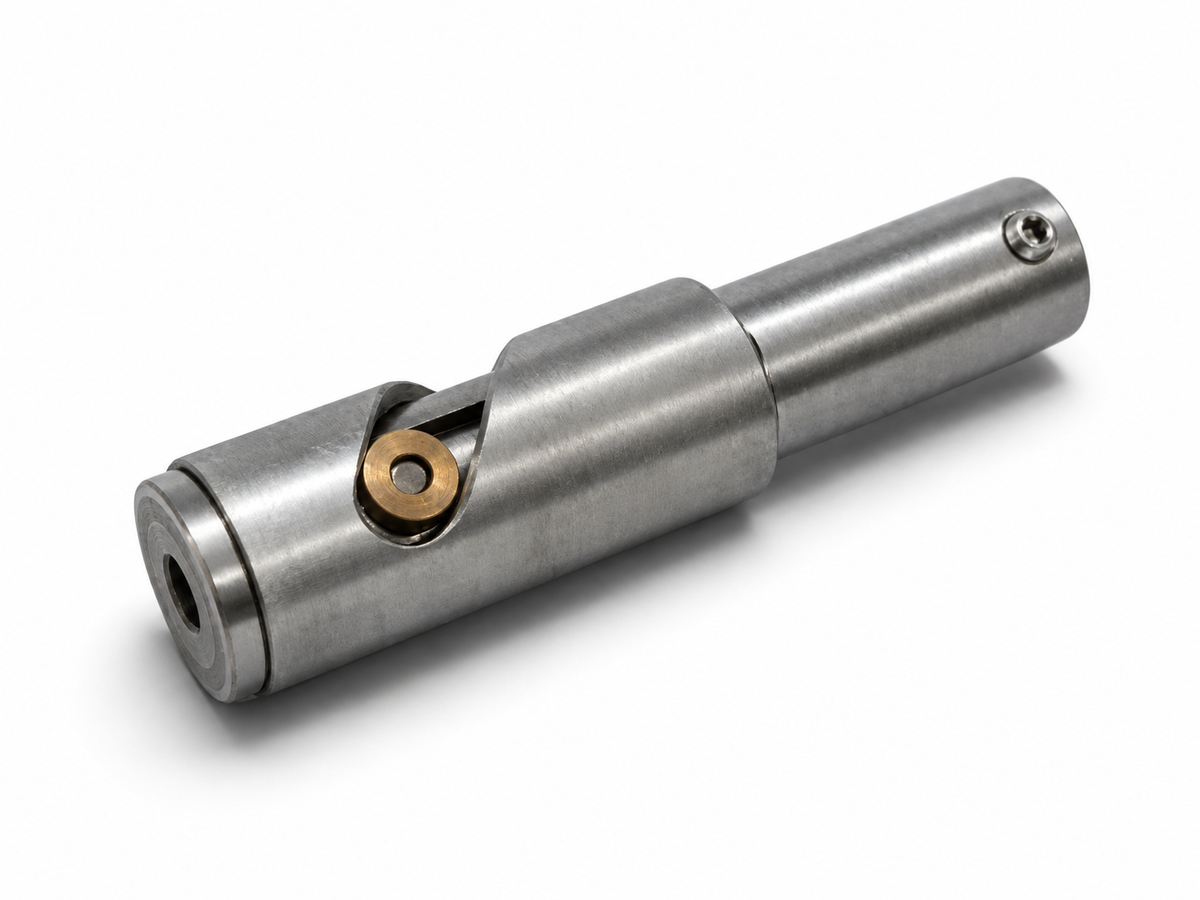

  • Pangea Speed internal throttle mechanism showing brass roller and mounting hardware
  • Internal Throttle
  • Internal Throttle

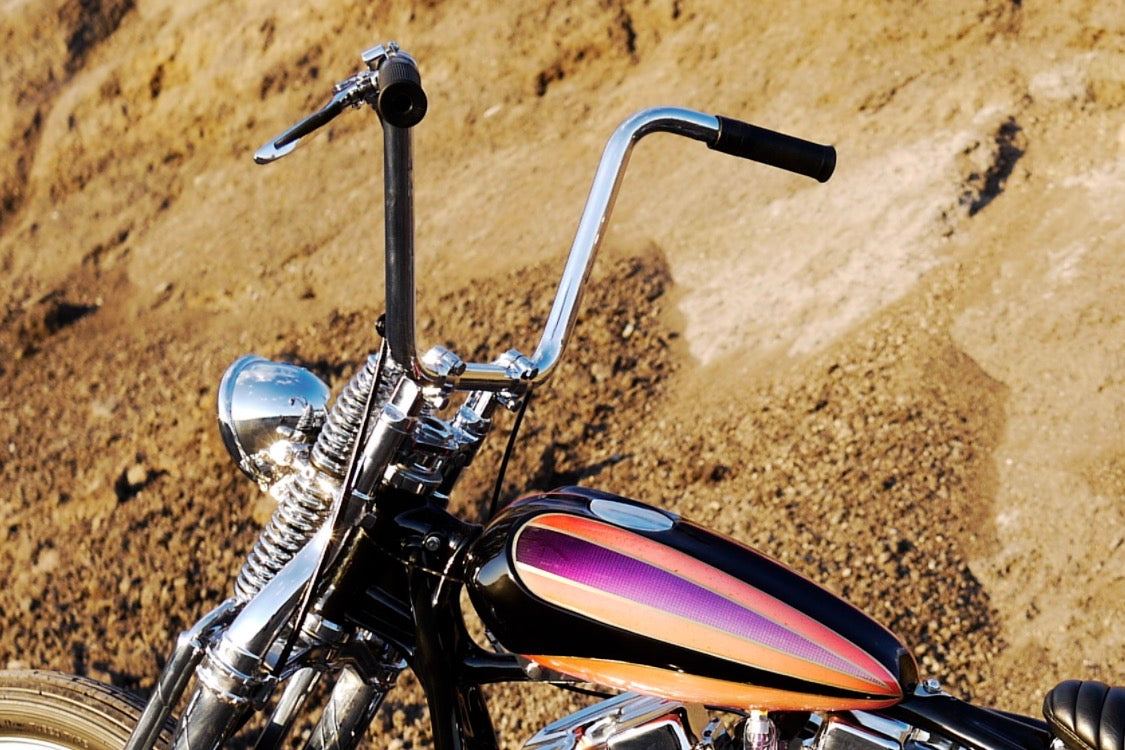

  • Custom chopper with chrome handlebars and internal throttle
  • Pangea Speed Internal Throttle installation instructions with handlebar preparation, cable assembly and operation checks
  • Pangea Speed internal throttle, assembled view on a white background
  • Pangea Speed internal throttle with shaft extended on a white background
  • Pangea Speed internal throttle mechanism showing brass roller and mounting hardware
  • Internal Throttle
  • Internal Throttle
  • Custom chopper with chrome handlebars and internal throttle
  • Pangea Speed Internal Throttle installation instructions with handlebar preparation, cable assembly and operation checks
Internal Throttle

Internal Throttle

$105.00

Clean bars. Smooth throttle action. Built to last. The Pangea Speed Internal Throttle routes your throttle cable inside the handlebar for a super clean chopper look without a bulky external throttle housing.

We consider this one of the best internal throttles on the market. Its durable bushing design avoids the fragile little bearings that can come apart in bearing-based assemblies. Straightforward installation with basic cutting and drilling makes it an easy way to clean up your handlebars.

Fitment

  • For 1" handlebars with a .093" wall thickness.
  • Works with our 1" grip sets, using the standard 1.125" (1-1/8") inside-diameter right grip.
  • Bars with a .120" wall thickness require the throttle insert to be ground or machined down slightly for proper fit.

Specs

  • Internal cable routing for a clean handlebar appearance.
  • Durable bushing design instead of fragile bearings.
  • Handlebar preparation: remove 3.940" from the throttle-side end.
  • Mounting hole: 13/64", located 1.495" from the newly cut bar end.

Includes

  • One internal throttle assembly.

Important Notes

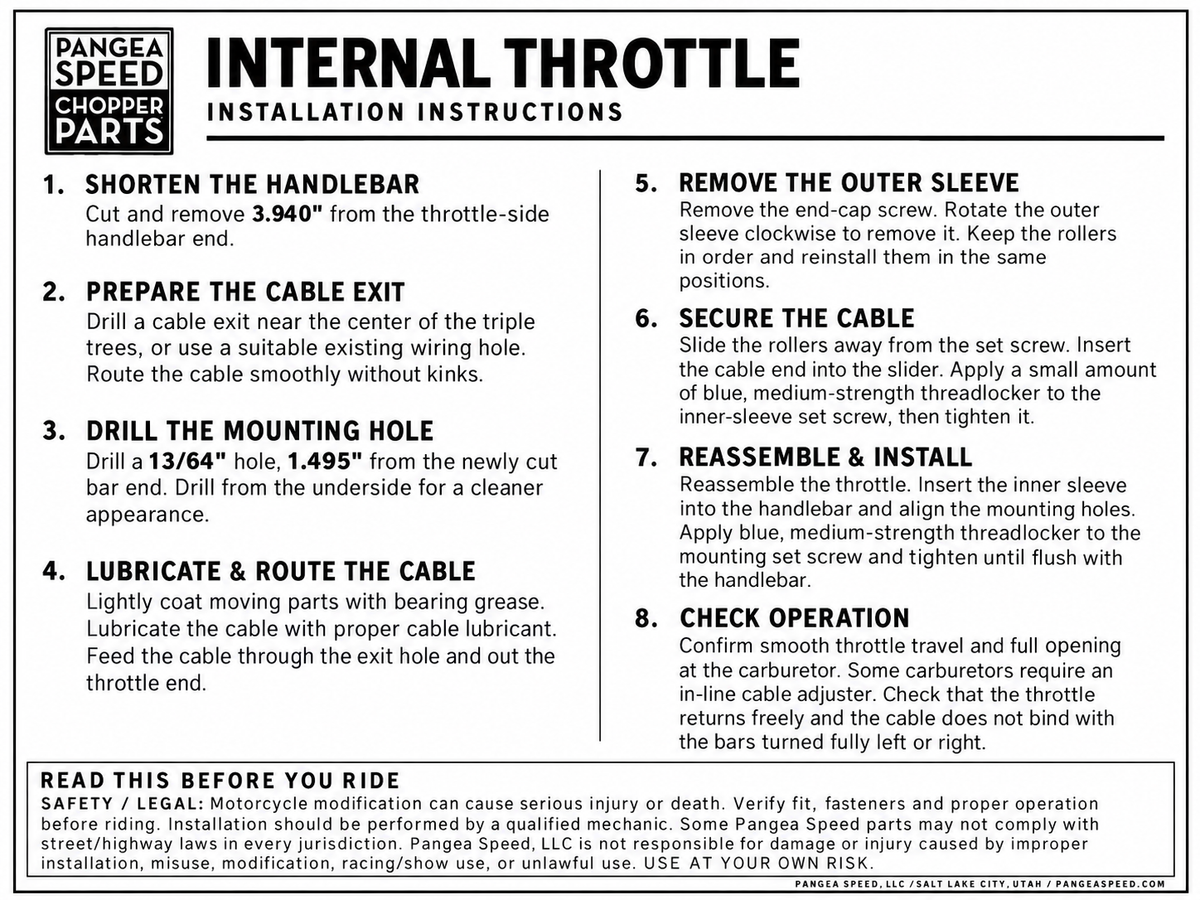

  • Installation requires shortening the handlebar, drilling the mounting hole, and providing a suitable cable exit. See the installation instruction image in the product gallery for the complete procedure.
  • Lightly grease moving parts and lubricate the throttle cable. Route the cable without kinks or binding.
  • Some carburetors require an in-line cable adjuster to achieve full throttle.
  • Before riding, verify secure mounting, full throttle travel, and free return with the handlebars turned fully left and right.

Safety & Liability Disclaimer

Motorcycles are inherently dangerous, and modifying them increases the risk of mechanical failure, serious injury, or death. All products sold by Pangea Speed, LLC are intended for show purposes only. These products are not designed, tested, or certified to comply with any federal, state, or local safety or Department of Transportation (DOT) standards and may not be legal for street use.

By purchasing, installing, or using these products, the customer knowingly and voluntarily assumes all risks associated with their use. This assumption of risk and release of liability applies to the customer, any passengers, and any subsequent or future owners of the motorcycle. Pangea Speed, LLC shall not be liable for any injury, death, property damage, or other loss arising from the purchase, installation, or use of these products. Customer agrees to indemnify and hold harmless Pangea Speed, LLC from any claims related to their use.
