35mm Narrow Glide Front Axle

A stainless steel front axle for Pangea Speed 35mm narrow glide trees and custom 35mm setups with approximately 5.5-inch fork spacing on center. Supplied with a 3/4-inch axle diameter that can be machined down to suit your hub.

Fitment

• Pangea Speed 35mm narrow glide trees.
• Other 35mm trees with approximately 5.5-inch spacing on center; verify your setup before ordering.
• K-model and early Sportster hubs using a 17mm (.669-inch) axle diameter require machining the axle to that size.

Specs

• Machined stainless steel construction for corrosion resistance.
• Supplied axle diameter: 3/4 inch (.750 inch).
• Can be turned down to 5/8 inch (.625 inch), 17mm (.669 inch), or a diameter between 5/8 and 3/4 inch.

Includes

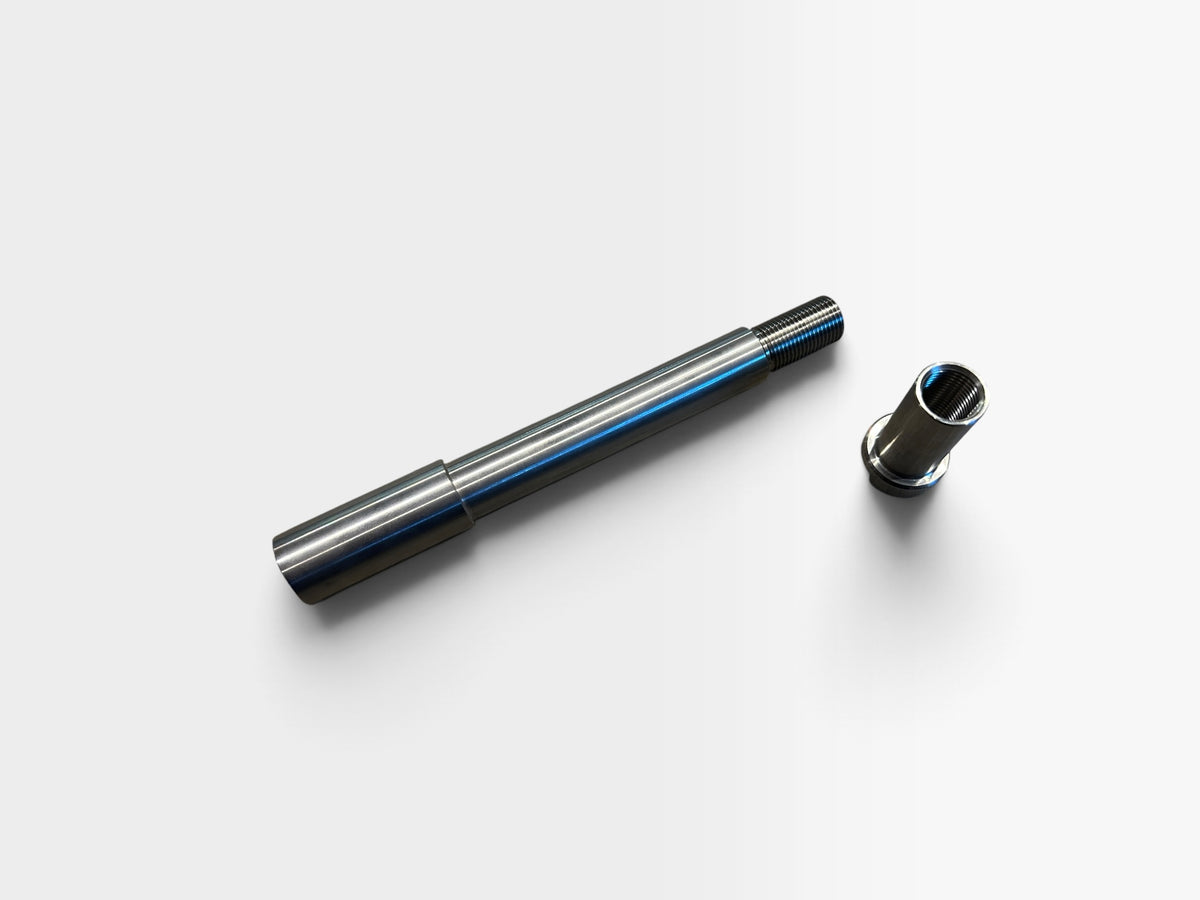

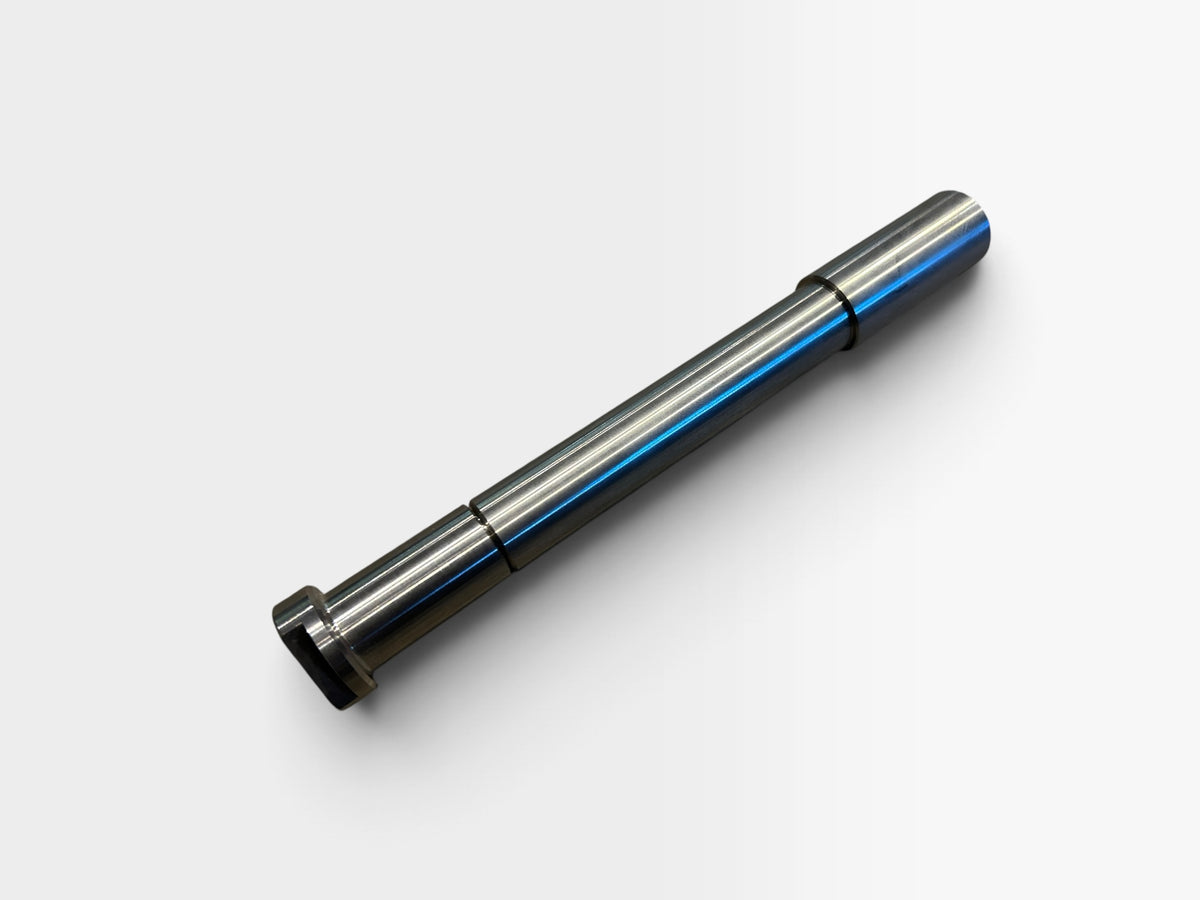

• One 35mm narrow axle assembly.

Important Notes

The 35mm designation refers to the fork setup; the supplied axle diameter is 3/4 inch. Smaller hub bores require machining. Confirm fork spacing, hub bore, and wheel spacer requirements for your build before installation.
